Solutions and products for industrial applications
To ensure your equipment is always up and running, choose genuine spare parts. NAR Technologies guarantees parts that are custom designed, tested and approved specifically for your generator sets. NAR Technologies provides spare parts that maximize performance, prolong the life of your equipment and meet today's strict requirements.
Cylinders, pistons, turbo chargers, Filters, Oils and Coolants are an essential part of your preventive maintenance program. Spares provided by NAR Technologies are tested and approved specifically for your equipment. Other consumables that have not been tested can cause significant damage during your genset lifecycle. Superior design and top-quality materials result in maximum power, longevity and low total cost of operation.
NAR Technologies collaborates closely with leading engine manufacturers from the marine, rail, industry, and power generation sectors to develop new components and systems for modern and efficient heavy duty diesel engines. The range of products extends from pistons, piston ring sets, and piston pins, to cylinder liners, valves, valve seat inserts and guides, to power cell units as customizable complete systems.
Some of the spare parts we offer include:

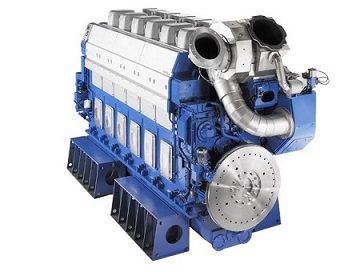

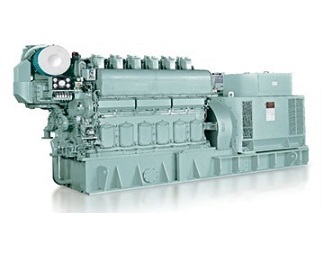

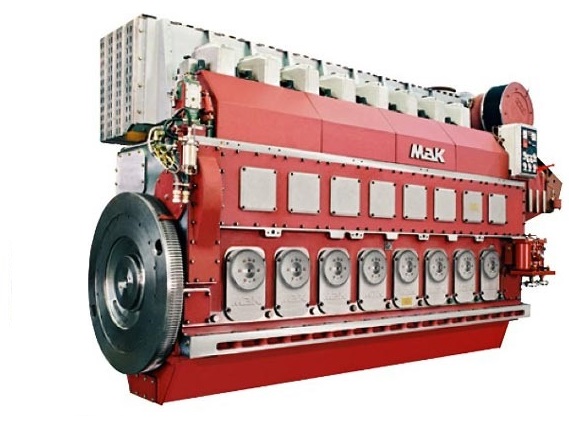

Complete Heavy Duty Deisel Engines for Power Generation
Diesel Engine Pistons
Piston Rings
Piston Pins
Cylinder Liners
Valves, Valve Seat Inserts
|

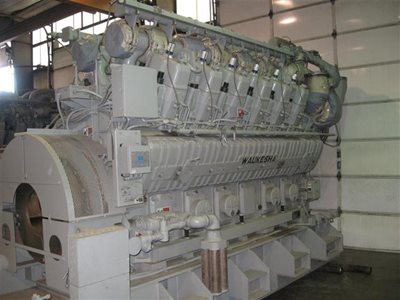

Heavy Duty Deisel Engines for Power Generation

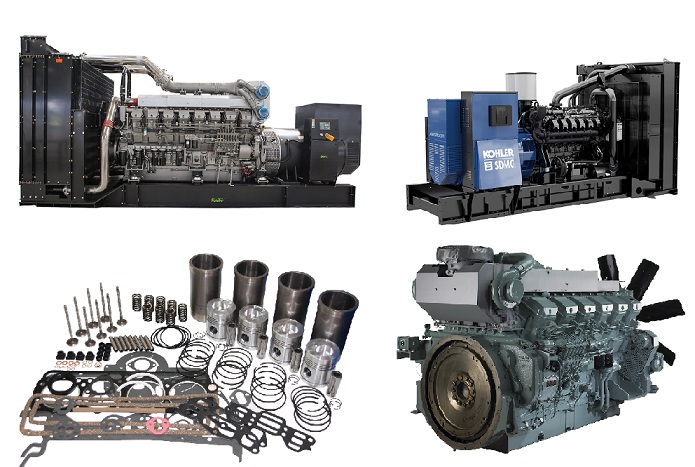

Providing Industrial Generator Engines for 10 Years NAR Technologies offers worldwide sales of Diesel Generators & Diesel generator Engines. We sell all major high performance brand name manufacturers, including: Caterpillar, Cummins, Detroit, Kohler, Katolight, Onan, and Generac. NAR Technologies has been supplying commercial and industrial diesel powered solutions for over 10 years. For All your requirements please give us a call or visit our offices.

Hevy Duty Engine Pistons:
Our portfolio includes a variety of product and material choices: cast or electron-beam-welded aluminum pistons and composite pistons with aluminum, nodular cast iron, and steel skirts. Composite pistons are screwed to piston crowns made of forged steel—a material with an excellent track record. Steel pistons are available not only with a screwed connection but also in friction-welded or high-temperature brazed variants. The MAHLE piston range for large engines includes products with diameters of up to 580 millimeters.
Application Field
Heavy Duty Genesets
Railway Vehicles
Industrial Engines
Technical Data
Diameter: 130mm - 580mm
Material: Aluminium, GJS (spheroidal graphite iron), steel
Joining techniques: Electron Beam Welding, Friction Welding
Piston Rings:
The right piston ring pack for every engine: our product range includes compression rings and oil control rings in various designs, profiles, and technologies. Our piston rings are suited to all types of combustion engines with cylinder diameters of up to 320 millimeters. Our piston rings are manufactured from cast iron and steel using the latest technologies, and their performance is optimized by means of high-quality coating processes.
Rings made of base casting material with chromium ceramic coating and steel rings with chromium nitride PVD coating are available. PVD-coated rings exhibit extremely low wear and lubricating oil consumption, while the wear resistance is high
Application Field
Heavy Duty Genesets
Railway Vehicles
Oil & Gas
Marine Technology
Technical Data
Diameter: 130mm - 320mm
Material: Flake-graphite cast iron, NCI, steel
Coatings: Chromium,Chromium Ceramic,HVOF,PVD
Piston Pins:
Piston pins are used in four-stroke engines with piston pin diameters of up to 150 millimeters. The NAR Technologies product range fulfills the highest standards of quality, precision, and diversity of applications. Our engineers are constantly working to reduce the weight and wear of piston pins.
Application Field
Heavy Duty Genesets
Railway Vehicles
Oil & Gas
Marine Technology
Technical Data
Diameter: 50mm - 150mm
Material: Steel
Product Designs: Axial Holes, Sealing plug, Oil Feed Tube
Cylinder Liners
Our cylinder liners cover a wide range of requirements. We can offer the right product for every engine with piston diameters of up to 460 millimeters. And we have the right material for every customer requirement. All of them are extremely robust and have low wear. The liners are produced in a centrifugal casting process and typically supplied as ready-to-assemble components. In addition to made-to-print parts, we offer individually adapted liners, such as those with cooled liner flanges and deep-hole bores with special cylinder lubrication. Our comprehensive finite element analyses improve load capacity, deformation properties, weight, and service life.
Application Field
Heavy Duty Genesets
Railway Vehicles
Oil & Gas
Special Vehicles
Technical Data
Diameter: 130mm - 460mm
Material: Flake Graphite cast iron, NCI, Steel
Product Process: Cooled liner flanges, Rolled hollow grooves, Plateau honing
Power Cell Units
The power cell unit (PCU) consists of the piston, piston pin, piston rings, and cylinder liners. Power cell units are developed as complete modules. They offer particularly high functionality and efficiency because the individual building blocks are optimally coordinated. This saves time and costs—especially during the development phase. Nonetheless, all individual components can be tailored to the respective requirements. We can thus offer our customers the greatest level of flexibility while simultaneously providing the advantages of an integrated overall system.
Application Field
Heavy Duty Genesets
Railway Vehicles
Oil & Gas
Special Vehicles
Technical Data
Diameter: 130mm - 460mm
Material: Flake Graphite cast iron, NCI, Steel
Product Process: Cooled liner flanges, Rolled hollow grooves, Plateau honing
Valves, valve seat inserts, and valve guides
In conjunction with valve seat inserts and guides, valves form a self-contained system, which must be able to withstand the highest loads. Our intake and exhaust valves are available in forged and hot-extruded versions. Depending on the application, they are hard-faced, hardened, nitride, or chrome-plated. Valves that are exposed to particularly high peak cylinder pressures or temperatures can be produced as sodium-filled valves..
Application Field
Heavy Duty Genesets
Railway Vehicles
Oil & Gas
Special Vehicles
Technical Data
Intake and exhaust valves: Ø 25 - 65 mm / L 80 - 250 mm
Valve seat inserts Ø 30 - 200 mm
Valve guides: Ø < 23 mm
|
