PURPOSE AND SCOPE
BTR-4 is designed to transport personnel of motorized infantry units and their fire support in combat. BTR is used to equip units capable of fighting in various conditions, including in conditions of the enemy using weapons of mass destruction. The APC can be the basic vehicle for equipping the special rapid reaction forces and marines. An APC can perform assigned tasks both in the daytime and at night, in different climatic conditions, on roads with various coatings and in conditions of total impassability. Operating temperature range from -40 to + 55 ° C.
CONSUMPTION
- BTR-4 has three departments
- Front - Office of Management
- Average - motor-transmission department
- Rear - combat and landing units
his arrangement allows you to quickly transform the combat and landing compartment without changing the layout solutions for the power plant and transmission to create a wide family of machines.
The carrying capacity of an armored personnel carrier allows creating not only variants of performances and a family of vehicles, but also to install additional armored protection against automatic small-caliber guns.
On the basis of BTR-4 can be created:
- commander's vehicle BTR-4K
- combat reconnaissance vehicle BRM-4K
- repair and evacuation machine (BREM)
- MOS-4K fire support vehicle
- command-staff vehicle BTR-4KSH
- armored sanitary-evacuation machine BSEM-4K, etc.
- Content
- Basic tactical and technical characteristics of BTR-4
- Commander's car BTR-4K
- Command and staff vehicle BTR-4KSH
- Sanitary-evacuation machine BMM-4S
- MOTOR-BTR Maintenance and Repair Workshop
- Repair and evacuation machine BREM-4RM
- BTR-4E
- BTR-4V1
- BTR-4V2
- BTR-4MV
TBASIC TACTICAL AND TECHNICAL CHARACTERISTICS OF BTR-4
| Parameter | Unit of measurement | Value |
| General characteristics | ||
|---|---|---|
| Modification weight: | ||
| with bulletproof protection | t | 17.5 + 3% |
| with additional protection | t | up to 25 + 3% |
| Wheel formula | 8x8 | |
| Crew | 3 commander, operator, driver | |
| Troopers | 7-9 (depending on the combat module) | |
| Armament | depending on the installed combat module | |
| Specific power: | ||
| with bulletproof protection | hp / t | not less than 28.6 |
| with additional protection | hp / t | not less than 20 |
| The maximum speed of movement, km / hour: | ||
| By highway | km / h | 110 |
| Afloat | km / h | to 10 |
| Power reserve | km | not less than 690 |
| Max. Lifting angle | degrees | thirty |
| Max. Roll angle | degrees | 25 |
| Applied motors | ||
| Standard motor: | ||
| Type, brand | two-stroke diesel 3TD | |
| Max power | hp | 500 (option 600 is possible) |
| Reserve version of the engine: | ||
| Type, brand | four-stroke diesel DEUTZ EURO III | |
| Max power | hp | 489 or 598 |
|
Options |
unit of measurement |
Value |
|
General characteristics |
||
|
Weight |
|
|
|
with bulletproof protection |
t |
21.9 |
|
with additional protection |
t |
24.4 |
|
Wheel formula |
|
8x8 |
|
Crew |
people |
3 (commander, operator, driver) |
|
Troopers |
people |
7 ÷ 9 (depending on the module and version used) |
|
Armament |
|
|
|
A gun |
|
|
|
mark |
|
ZTM1 or ZTM2 |
|
caliber |
mm |
thirty |
|
ammunition |
mm |
300 + 72 |
|
Machine gun |
PC. |
|
|
mark |
mm |
KT-7.62 or PKT |
|
caliber |
mm |
7.62 |
|
ammunition |
PC. |
1500 |
|
Grenade Launcher |
mm |
|
|
mark |
mm |
KBA-117 or AG-17 |
|
caliber |
PC. |
thirty |
|
ammunition |
|
87 |
|
Specific power |
|
|
|
with bulletproof protection |
hp / t |
22.83 / 20.5 |
|
with additional protection |
hp / t |
21.27 / 18.4 |
|
Maximum driving speed: |
|
|
|
on the highway |
km / h |
90 |
|
afloat |
km / h |
to 10 |
|
Max. Lifting angle |
degrees |
thirty |
|
Max. Roll angle |
degrees |
25 |
|
Power point |
|
|
|
mark |
|
three-stroke diesel 3TD-3A |
|
power |
hp |
500 |
|
Alternative power plant |
|
|
|
mark |
|
4-stroke diesel DEUTZ BF 6M 1015 SR |
|
power |
hp |
449 |
|
Parameter name |
unit of measurement |
Value |
|
General characteristics |
||
|
Weight |
|
|
|
with bulletproof protection |
t |
20.9 |
|
Wheel formula |
|
8x8 |
|
Crew |
people |
3 (commander, driver, shooter,) |
|
Staff of the Staff |
people |
7th |
|
Armament |
|
|
|
Anti-aircraft machine-gun installation |
|
|
|
machine gun mark |
|
KT-12.7 or NSVT-12.7 |
|
caliber |
mm |
12.7 |
|
ammunition |
PC. |
300 |
|
vertical guidance angles |
hailstones |
- 3 ÷ +68 |
|
horizontal alignment angles |
hailstones |
360 |
|
Power auxiliary |
|
|
|
maximum power |
hp |
6.8 |
|
Specific power |
|
|
|
with bulletproof protection |
hp / t |
23.92 |
|
with additional protection |
hp / t |
23.14 |
|
Maximum driving speed: |
|
|
|
on the highway |
km / h |
110 |
|
afloat |
km / h |
to 10 |
|
Max. Lifting angle |
degrees |
thirty |
|
Max. Roll angle |
degrees |
25 |
|
Power point |
|
|
|
mark |
|
three-stroke diesel 3TD-3A |
|
power |
hp |
500 |
|
Alternative power plant |
|
|
|
mark |
|
4-stroke diesel DEUTZ BF 6M 1015 SR |
|
power |
hp |
449
|
|
Options |
unit of measurement |
Value |
|
General characteristics |
||
|
Weight |
|
|
|
with bulletproof protection |
t |
21.9 |
|
Wheel formula |
|
8x8 |
|
Crew |
people |
3 (commander, paramedic, driver) |
|
Number of seats |
|
|
|
lying |
people. |
4 |
|
sitting down |
people. |
8 |
|
Specific power |
|
|
|
with bulletproof protection |
hp / t |
22.83 |
|
Maximum driving speed: |
|
|
|
on the highway |
km / h |
90 |
|
afloat |
km / h |
to 10 |
|
Max. Lifting angle |
degrees |
thirty |
|
Max. Roll angle |
degrees |
25 |
|
Power point |
|
|
|
mark |
|
three-stroke diesel 3TD-3A |
|
power |
hp |
500 |
|
Alternative power plant |
|
|
|
mark |
|
4-stroke diesel DEUTZ BF 6M 1015 SR |
|
power |
hp |
449 |
The maintenance and repair workshop is designed to provide the most labor-intensive work and to provide qualified crews of armored personnel carriers with maintenance and field (1 and 2 level) repair of the APC and can perform its functions independently of the time of year.
The workshop is adapted for operation on roads with various coatings and off-road conditions.
Workshop equipment provides the deployment of jobs: electric welder, electrician, battery and locksmith.
Workshop equipment allows you to perform the following jobs:
- external washing and tinting of armored personnel carriers;
- operational adjustment of units, assemblies, mechanisms and their control drives;
- charging of discharged air cylinders;
- charging of batteries, as well as starting the engine BTR with insufficient charge of its batteries;
- performance of works on argon-arc and electric-arc welding by direct and alternating current of all kinds of metals;
- checking the correctness of electrical equipment BTR;
- simple mechanic-mechanical work;
- elimination of minor malfunctions and replacement of units and units of the power plant, as well as units and assemblies of the undercarriage.
During the maintenance and field repair of the BTR, the workshop can be used alone or in combination with other maintenance and repair facilities.
Specifications:
|
Parameter name |
Value |
|
Chassis |
KrAZ-6322 |
|
- wheel formula |
6 × 6 |
|
- engine power, kW (hp) |
243 (330) |
|
- maximum speed, not less than, km / h |
80 |
|
Overall dimensions of the workshop on the chassis in the stowed position: |
|
|
- length, mm |
10030 |
|
- width, mm |
2625 |
|
- height, no more than, mm |
3300 |
|
Weight of workshop, kg, no more than |
14842 |
|
Crew, people. |
3 |
|
Crane-boom: |
|
|
- carrying capacity, kg |
1500 |
|
- the number of personnel necessary for the installation (removal) of the crane, people |
3 |
|
Time required for workshop deployment, min |
20 ... 25 |
|
Time required to curtail the workshop, min |
25 ... 30 |

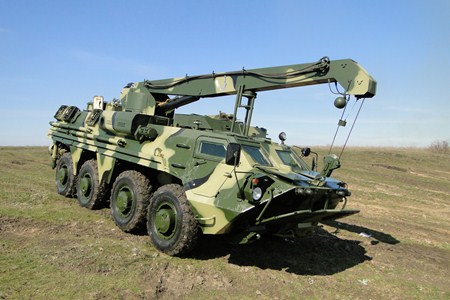

The armored repair and evacuation vehicle BREM-4RM is made on the basis of the BTR-4E armored personnel carrier units and is designed to solve the following tasks:
- the conduct of technical reconnaissance on the battlefield;
- preparation for evacuation and towing of defective, damaged, controlled and unguided wheeled vehicles weighing up to 26 tons to the assembled points of damaged vehicles;
- preparation for pulling out and direct pulling of stuck (sunken) or damaged samples of weapons and military equipment with a mass of up to 26 tons;
- providing assistance to the crews in carrying out routine and medium repairs, both in the field and at assembly points of damaged vehicles;
- performing lifting and transport operations with the help of crane equipment in the installation and dismantling of units and assemblies of armored personnel carriers, both in the field and at assembly points of damaged vehicles;
- performance of welding and cutting of ferrous metals with the help of welding equipment;
- transportation of cargo, spare parts and tools on the cargo platform.
- loading of high-pressure cylinders with the help of a compressor unit.
Main characteristics
|
Parameter name |
unit of measurement |
Value |
|
General characteristics |
||
|
Weight |
|
|
|
with bulletproof protection |
t |
22 |
|
Wheel formula |
|
8x8 |
|
Crew |
people |
4 (commander, driver, welder, installer) |
|
Crane equipment |
|
|
|
carrying capacity |
t |
3.2 |
|
radius of action |
m |
5 |
|
Stand-alone power installation |
|
|
|
power |
hp |
25 |
|
Welding equipment (power) |
A |
300 |
|
Specific power |
|
|
|
with bulletproof protection |
hp / t |
22.72 |
|
Maximum driving speed: |
|
|
|
on the highway |
km / h |
90 |
|
afloat |
km / h |
to 10 |
|
Max. Lifting angle |
degrees |
thirty |
|
Max. Roll angle |
degrees |
25 |
|
Power point |
|
|
|
mark |
|
three-stroke diesel 3TD-3A |
|
power |
hp |
500 |
|
Alternative power plant |
|
|
|
mark |
|
4-stroke diesel DEUTZ BF 6M 1015 SR |
|
power |
hp |
449 |
...
